  • A basic machine with many accessory options.
  • The accessary can be changed in 10 seconds.
  • Adjustable brushes- 3 positions
  • Variable speed adjusting
Availability:


Product description Multi machine
Engine China engine
Engine type Gasoline,4-stroke
Displacement 212 cc
Engine power 4.0 kW at 3600 RPM
Tank capacity 3.6 Liter
Air filter Dual element (paper and foam)
Starter Recoil start
Emission EU 5
Throttle control Yes
Forward walking speed 1.53- 2.97 - 4.14 - 5.86 km/h forward
Backward walking speed 2.3 km/h
Sweeping speed 400 RPM
Operation Handle fixed
Transport way wheel
Wheel size 16" snow tyre
Throttle control Yes
Gear speed 3 forward / 1 reverse
Wheel speed 1.5 - 3.0 - 4.4 km/h forward
Carton size 61 x 51 x 74 cm
Loading qty -20GP/40GP/40HC with pallets 80pcs / 160pcs / 240pcs

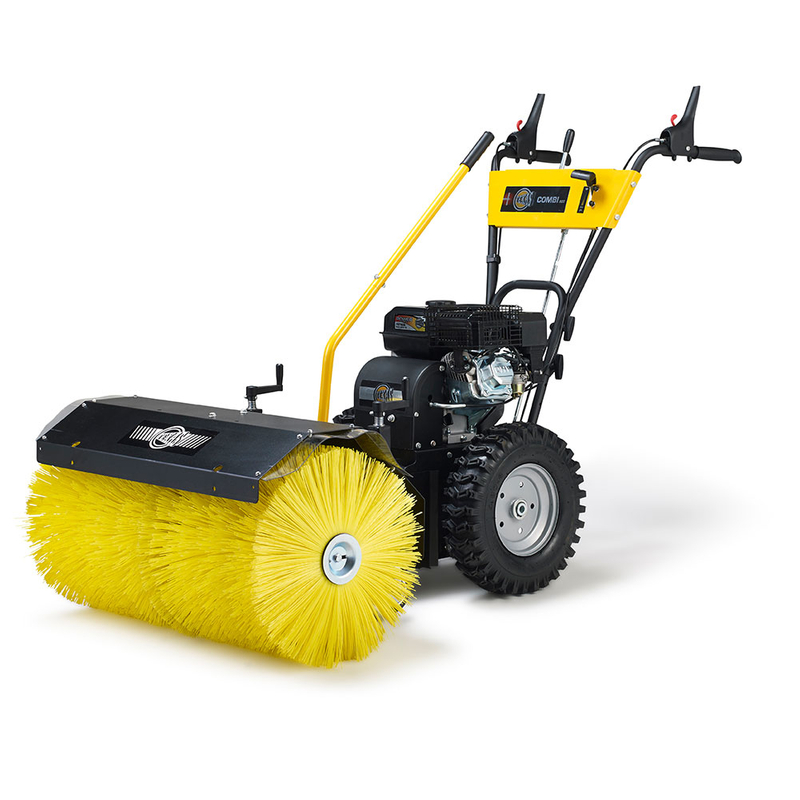

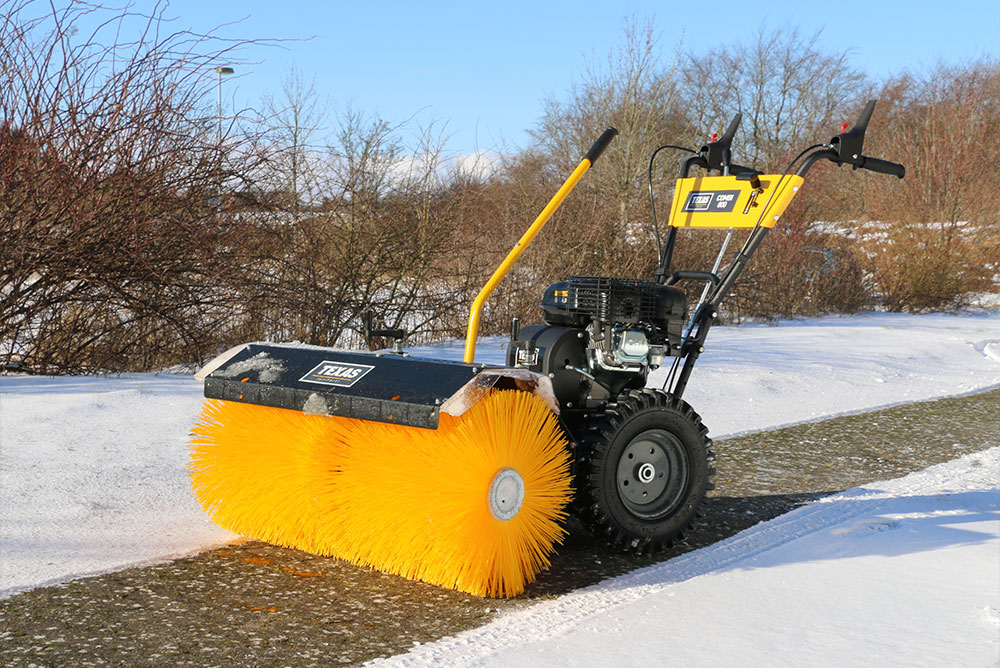

Multi sweeper
Working width 80cm
Brush diameter 46cm
Carton size 88 x 74 x 53 cm
Loading qty -20GP/40GP/40HC with pallets 54pcs / 117pcs / 156pcs
Multi snow thrower
Working width 61cm
Throwing distance 10-15m
Carton size 70 X 70 X 57 cm
Loading qty -20GP/40GP/40HC with pallets 72pcs / 144pcs / 192pcs
Multi snow blade
Working width 80cm
Working height 42cm
Carton size 84 x 47 x 31 cm
Collector box Unit
Volume 160L
Working width 80cm



advantage

c4

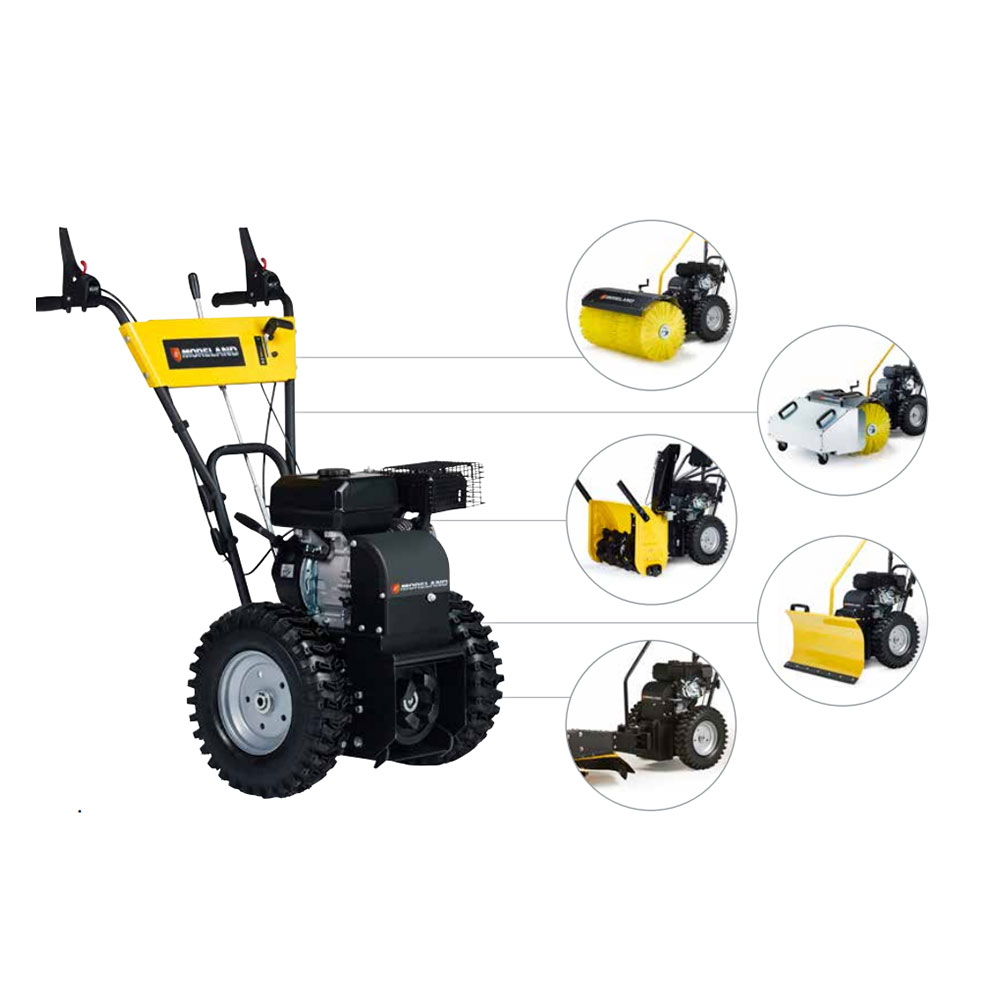

A basic machine with many accessory options.


The concept behind the multi machines, is that they can be used all year round.


A multi machine saves space – you only need a

basic machine, which takes up little space. Then you can choose what accessories

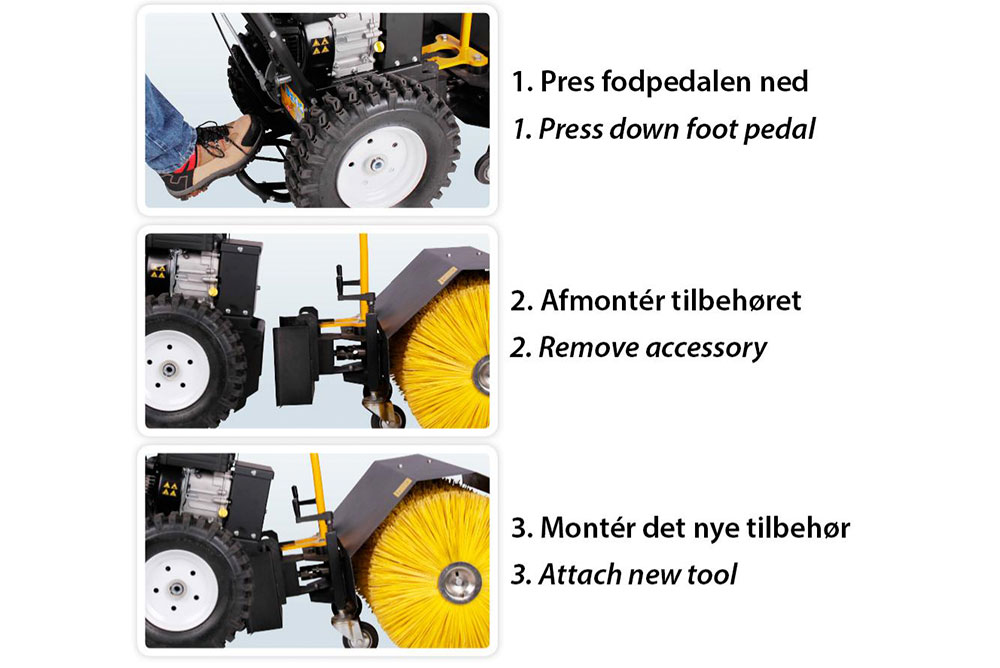

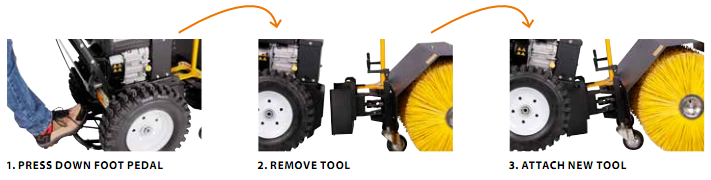

The accessary can be changed in 10 seconds

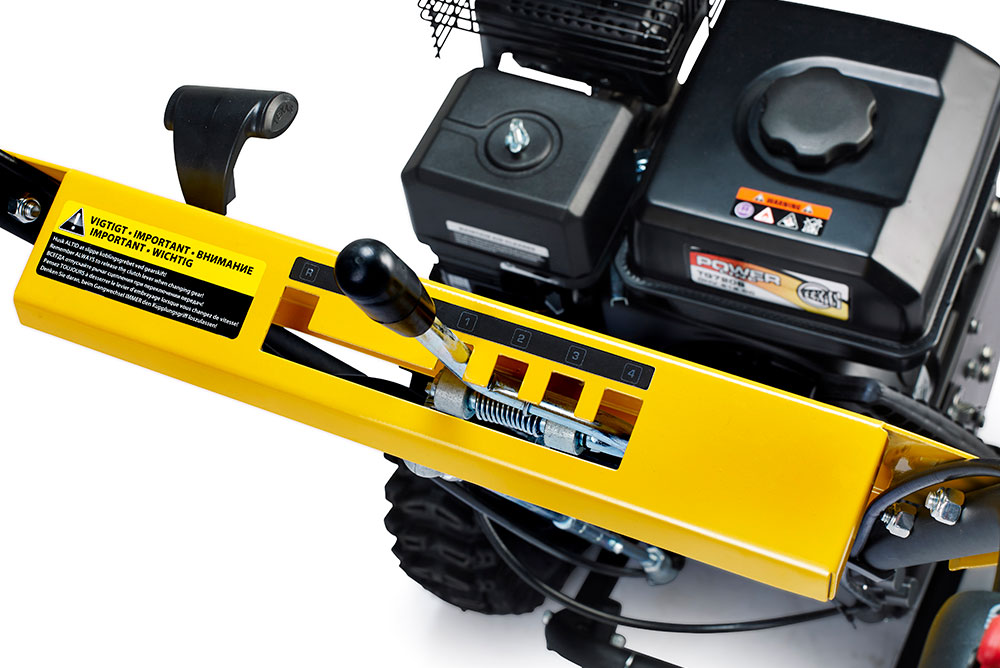

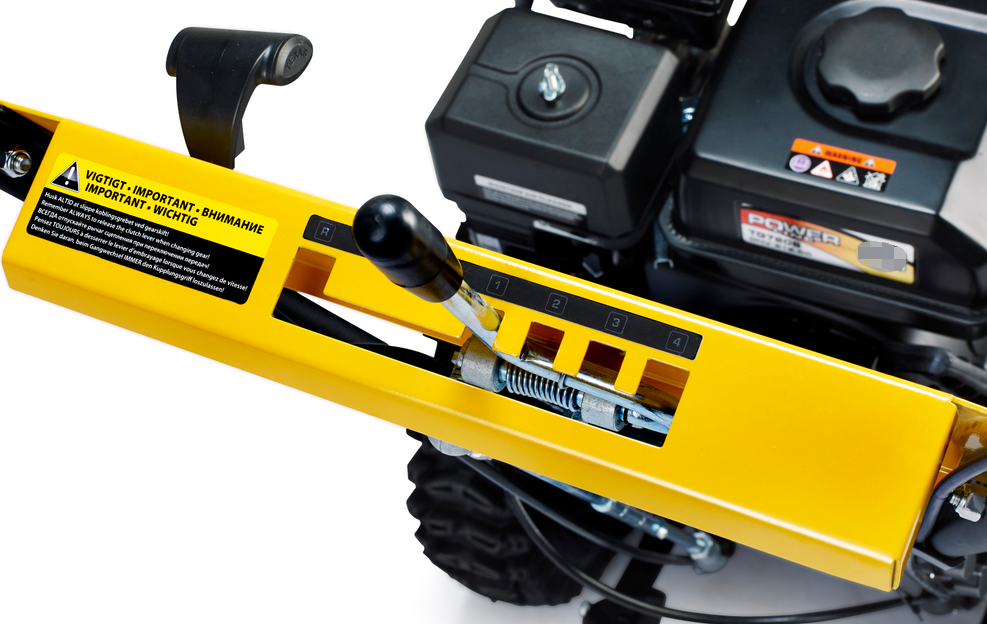

Variable transmission

4 forward speed and 1 reverse speed

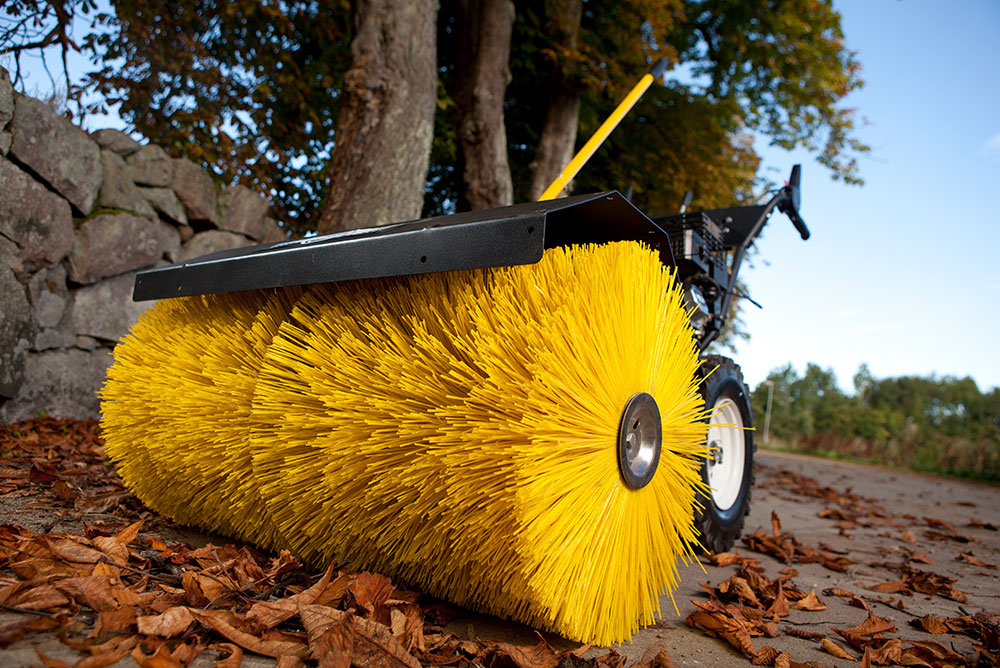

SWEEPER

Working width: 80 cm

Diameter: 45 cm

Adjustable: 3 pos.

+22°/0°/-22°

Brush speed: 400 rpm


DOZER BLADE

Working width: 80 cm

Working height: 42 cm

Adjustable: 3 pos.

+22°/0°/-22°

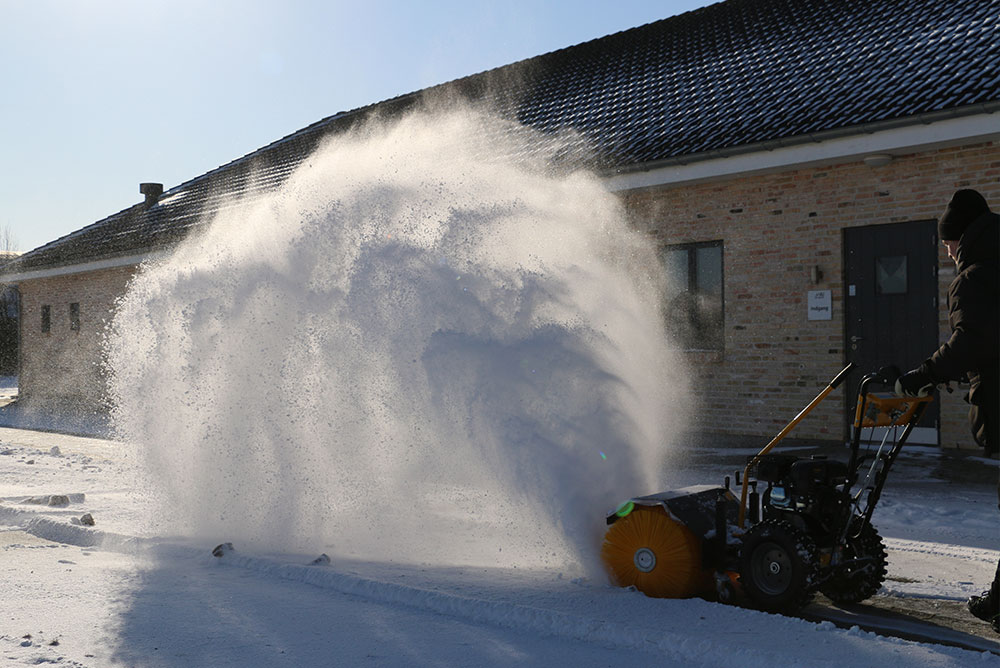

Snow thrower

Working width: 61cm;

Throwing distance:10-15m;


COLLECTOR BOX

Volume: 160 l

Width: 80 cm



1

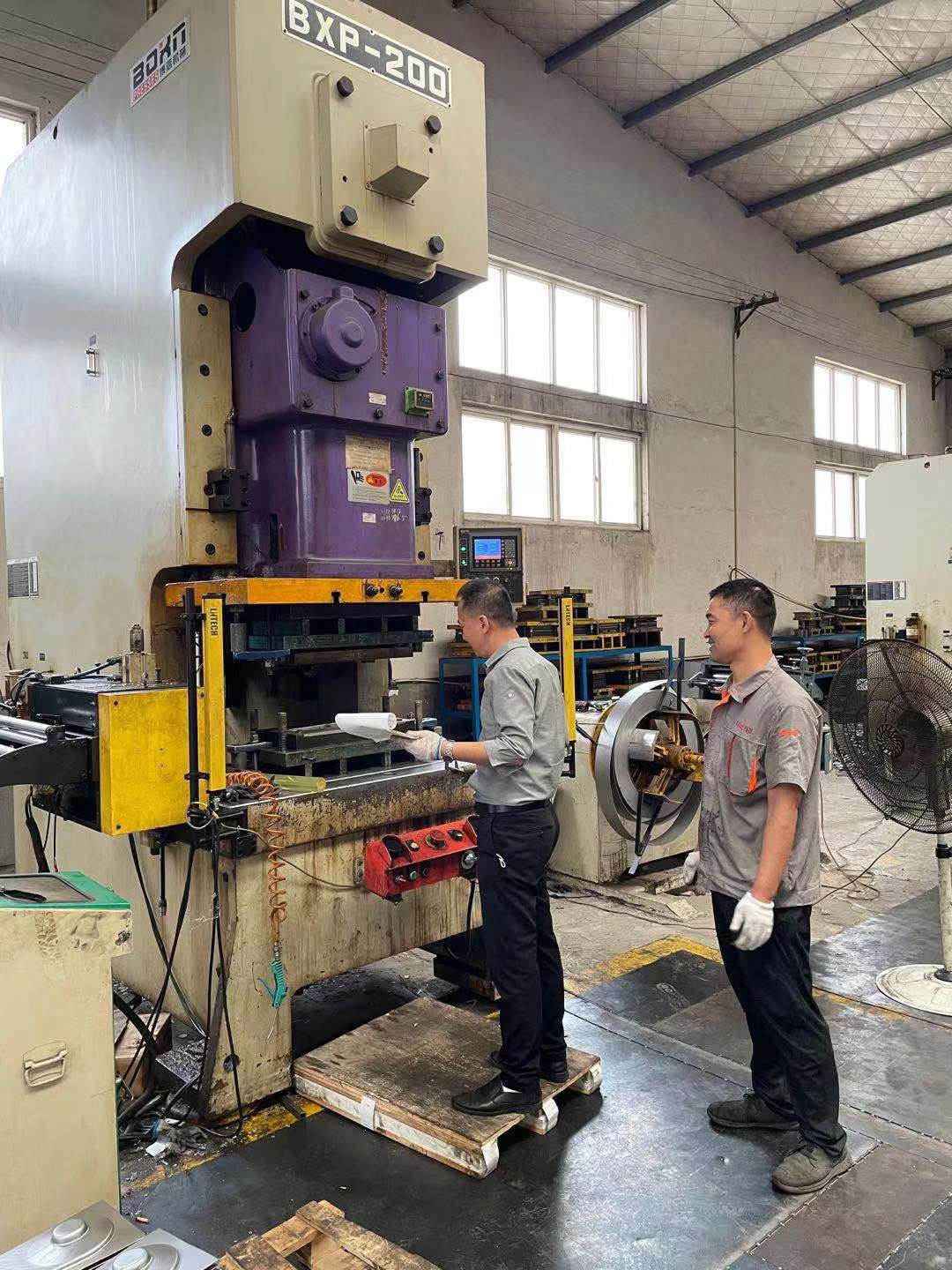

1. Product procession

Product procession

5

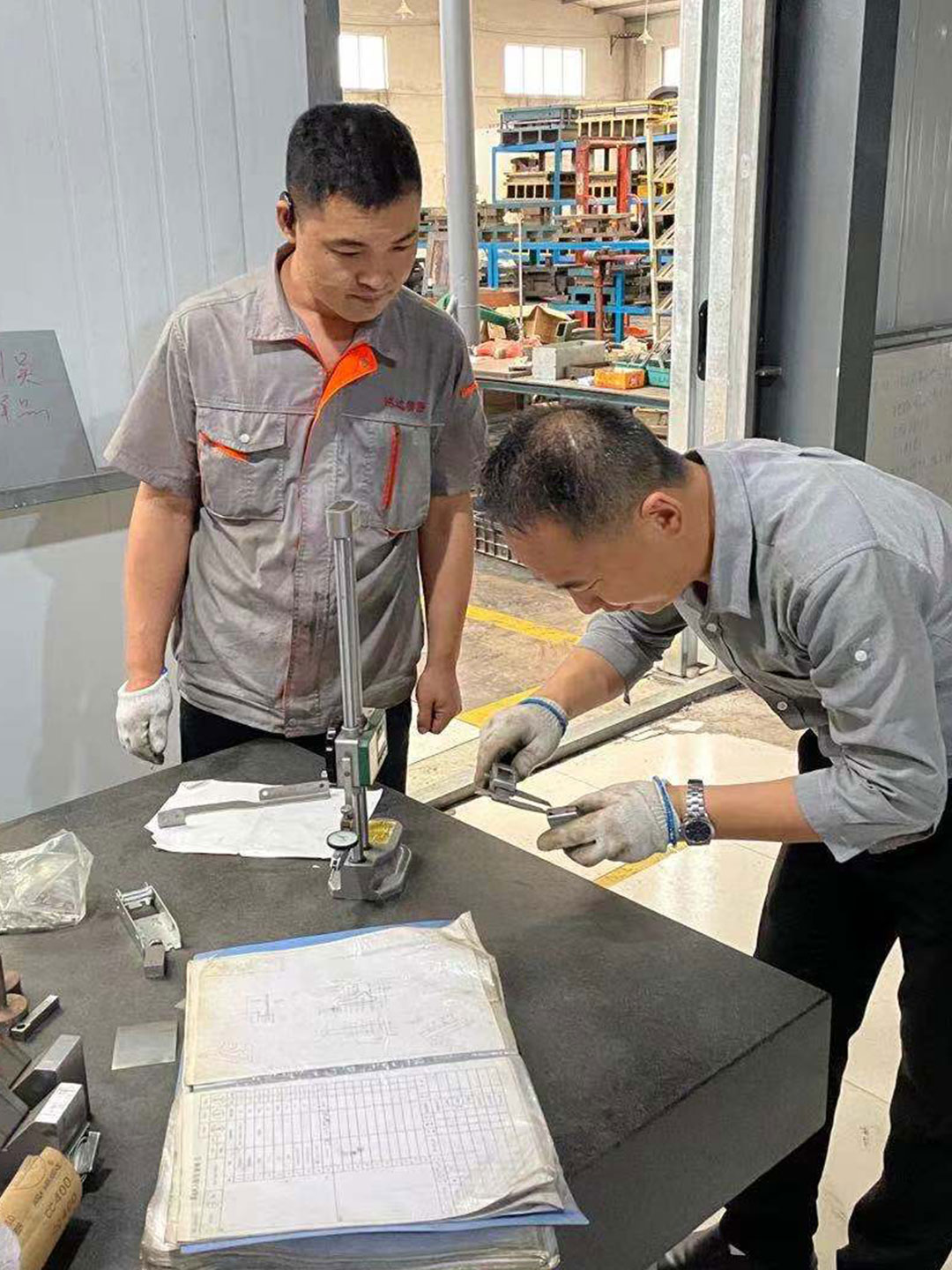

Product in QC

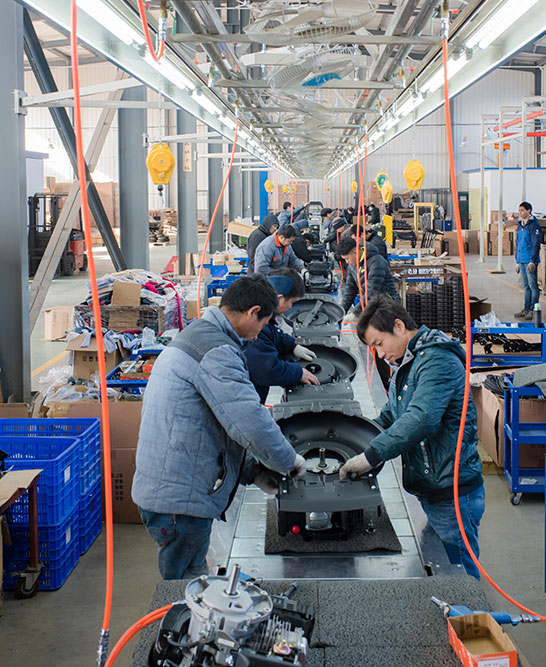

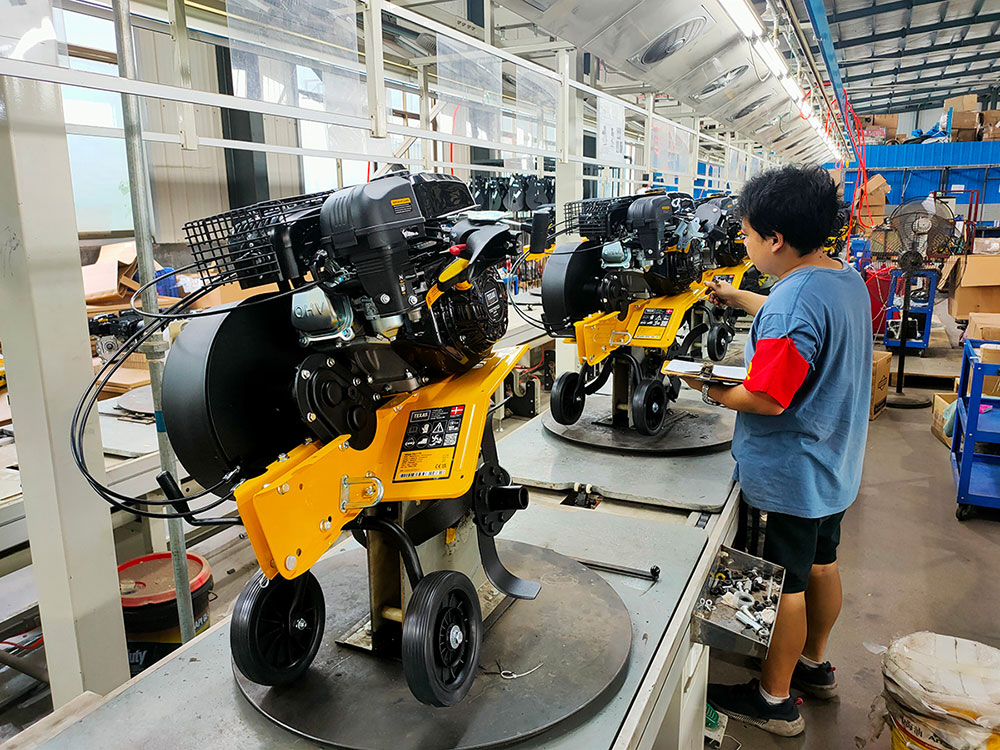

Production

1


PQC

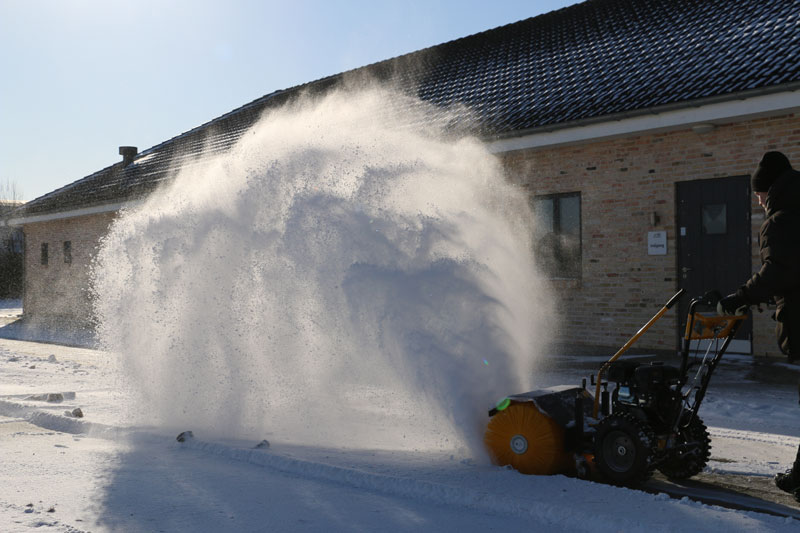

Testing

Final product


2

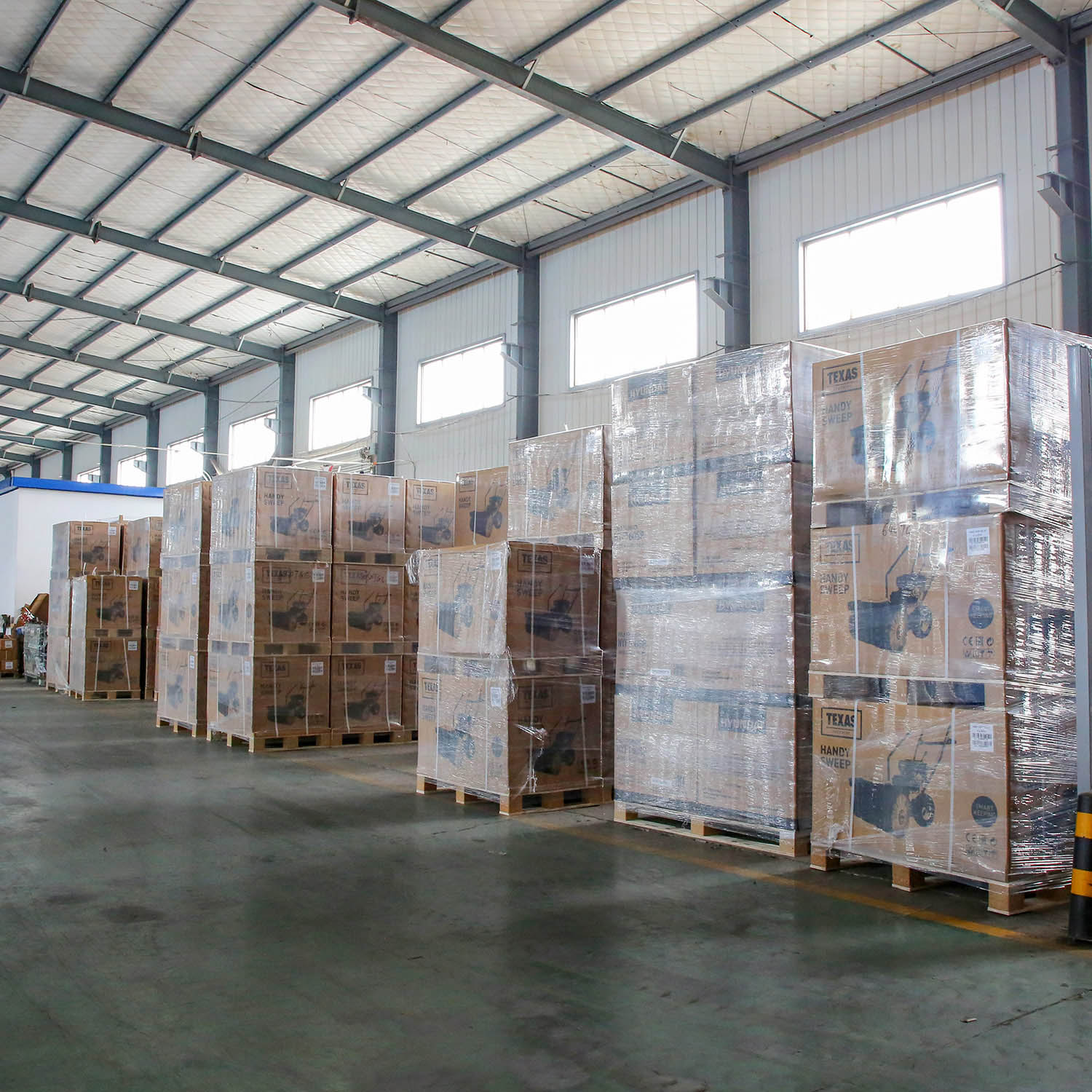

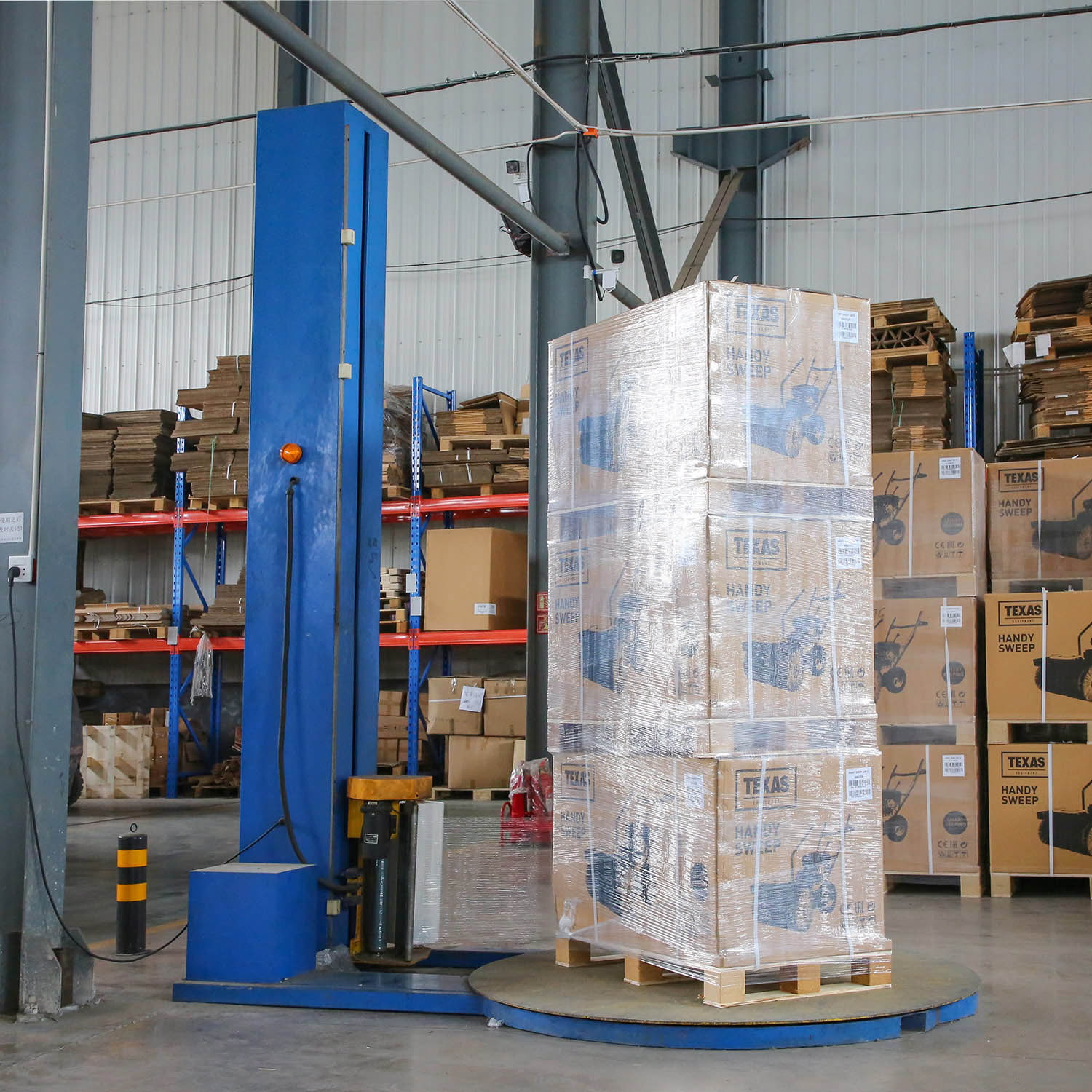

1. wrapped packing 2 warehousing 4


3

11

22

33

44

55

66
